INDUCTION BAR HEATER

Model Induction Bar Heater
Billet Dia ø10 mm to ø200 mm
Power rating 15kw – 1000kW
Frequency 500 Hz – 100 kHz
High energy efficiency.
Optimum forging temperature.
Reduced power consumption.
Increased die life
Signature

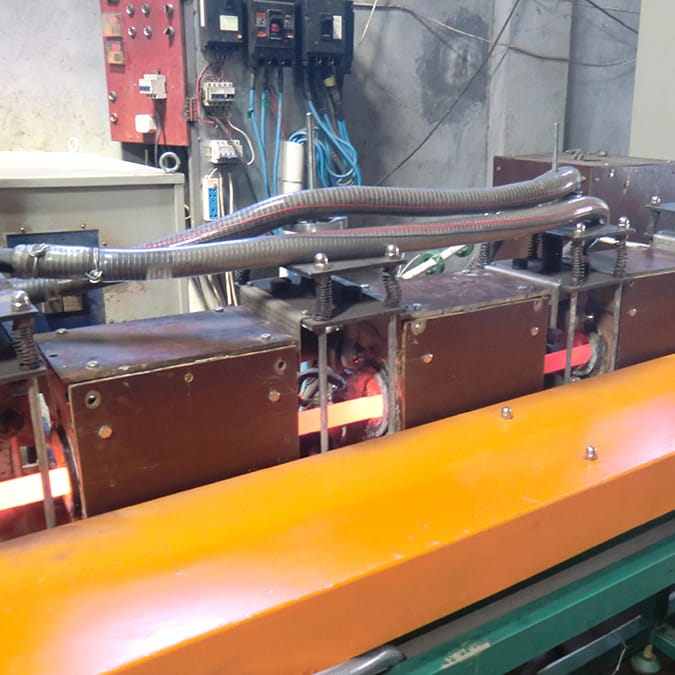

INDUCTION BAR HEATER

Induction bar heaters are loaded with multiple features such as the equipment has load resonant technology, digital control-based IGBT power supply unit. They provide an input power factor of 0.99 for 0 to 100% of output power. They have a flexible modular design, single utility connection, and true temperature uniformity control. With no special foundation required, this equipment has a robust and heavy mechanism handling system. Suitable for semi-forged and unforged component heating.

Compact and modular design, Electrotherm Multi-Zone heater can be installed very efficiently into new or existing lines. Individual add-on options include Bar charging, chain transfer table/ Ramp loader, bar separation system, entry roller table, and transfer units for downstream for forging/rolling. Due to its flexibility, the induction line can be adapted to every desired throughput.
